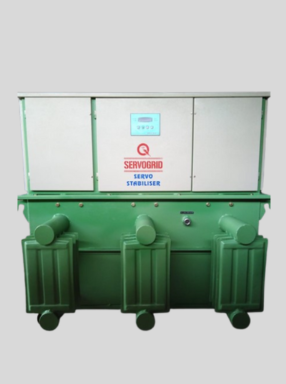

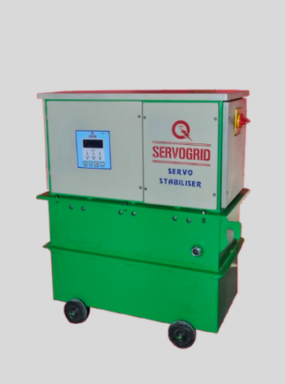

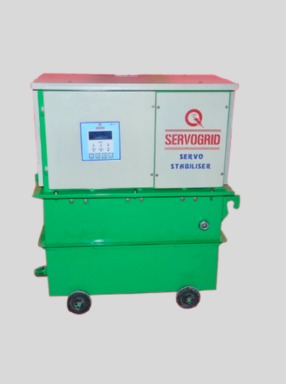

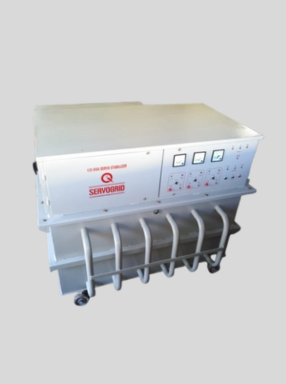

Servo Controlled Voltage Stabilizer (Oil Cooled - Three Phase)
The Servogrid Servo Stabilizer is an advanced oil-cooled, three-phase voltage stabilizer designed for industrial and commercial applications.
With a capacity range of up to 500 KVA, it is built to ensure stable and reliable voltage output for sensitive and critical equipment.
Technical Specifications
| Feature |
Details |
| Capacity Range |
Up to 500 KVA, 3 Phase |
| Input Voltage Range |
300-480V AC 3Ph 50Hz/60Hz |
| Other Voltage Range |
340-480V AC / 360-460V AC |
| Output Voltage |
415 V AC (3 Phase) |
| Output Voltage Adjustments |
380 to 415 V AC in 3 Phase |
| Output Voltage Regulation |
±1% (No Load) / ±1% (Full Load) |
| Connections |
STAR |
| Operating Frequency |
47-53 Hz |
| Overload Capacity |
120% for 30 Minutes |
| Speed of Correction |
15 V/Second |
| Short Circuit Period |
300% for 250 m.sec |
| Operating Temperature |
0 to 45 Degrees C |
| Response Time |
Less than 10 Milliseconds |
| Waveform Distortion |
NIL |
| Efficiency |
Above 98.5% |
| System Construction |
As per IS: 9815/94 |
| Type of Cooling |
Oil-Cooled |
| Mode of System |
Fully Automatic / Manual |
Applications
| Applications |
| CNC, Laser, Robotic, and Welding Machines |
| Medical Equipment |
| Processing Plants |
| Textile, Moulding, and Extruding Machinery |
| Escalators & Elevators |
| Large Deep Freezers |
| IT & Telecommunication Equipment |
| Scientific & Laboratory Equipment |
| Printing, Publishing, and Packing Machines |
| Hospitals and Hospitality Industries |
| Air Conditioning Plants |
| Any Other Microprocessor-Based Machines |
