Air Cooled - Three Phase

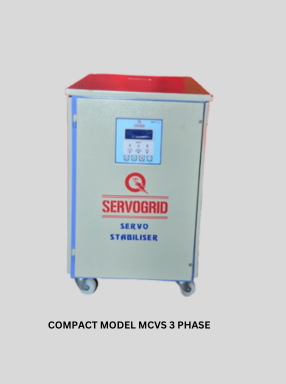

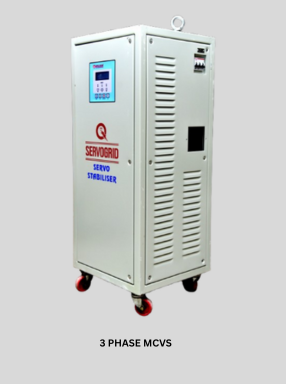

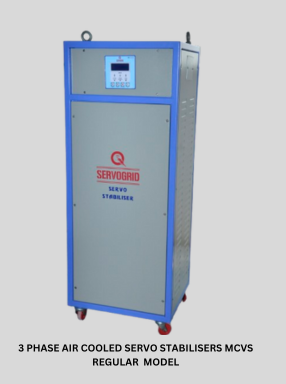

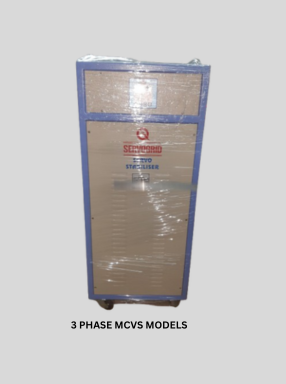

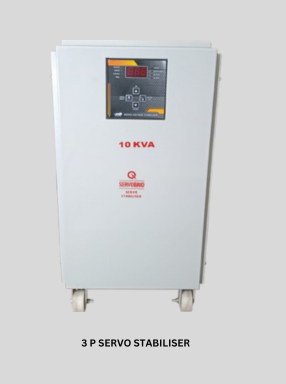

Servo Controlled Voltage Stabilizer (Three Phase-Air cooled )

The Servogrid Stabilizer is designed for trouble-free operation with a capacity range of up to 100 KVA (3 Phase). It offers excellent regulation, rugged build, and high efficiency. With solid-state control circuits and synchronous motor drives, the stabilizer ensures reliability and efficiency for a wide range of applications.

Technical Specifications

Feature	Details
Capacity Range	Up to 100 KVA, 3 Phase
Efficiency	Above 98.5%
Operating Range	No-load loss operation
Transformer Type	Copper wound with CR laminations
Quick Response Time	Very quick
Protections	Overload Protection (B/MCCB), Short Circuit Protection, Single Phasing Protection
Motor Drive	Synchronous motor
IC Grade	Professional grade ICs
Build Quality	Rugged and reliable
Power Factor	Unaffected by load power factor
Cooling	Air-cooled

Capacity Range up to 100KVA, 3 Phase

Technical Specifications

Parameter	Details
Protections	Single Phasing Prevention Output Electronic Overload Protection Phase Reversal Protection Input Short Circuit Protection with MCB Output Low Voltage Protection Input Overload Protection with MCB Output High Voltage Protection Audio Alarm for Protections
Indications	Mains Input on 3 LED Indications and 3ph Output ON Indication Input High and Low Indicated with LCD Display Output High and Low Cutoff Indicated with LCD Display Data Log: Last 100 fault events logged with Date & Time stamp (FIFO basis) Important for CSD Analysis
Programmable Controls	Display Scrolling: Auto/Manual Start/Stop Buttons Menu/Start/Stop/Reset/Log Buttons Programmable Parameters: - Output Voltage Set (210-245V) - Output Low Voltage Cutoff - Input High Indicated on LCD - Sensitivity/Regulation - Overload Cutoff - CT Full Scale - Output High Voltage Cutoff - Input Low Indicated on LCD
Applications	CNC/Laser/Robotic/Welding Machines Medical Equipment Processing Plants Textile/Moulding/Extruding Machinery Escalators & Elevators Large Deep Freezers IT & Telecommunication Equipment Scientific & Lab Equipment Printing/Publishing/Packing Machines Hospitals & Hospitality Industries Air Conditioning Plants Other Microprocessor-Based Machines
Metering	Digital 20x4 LCD Display 3ph Input Volt Meter (Ph-to-Ph and Ph-to-Neutral Voltages) Frequency Meter 3ph Ammeter (Output Current for Each Phase) 3ph Output Volt Meter (Ph-to-Ph and Ph-to-Neutral Voltages)
Protections (Detailed)	Output Low and High Voltage Protection Single Phasing Prevention Phase Reversal Protection Audio Alarm for Protections Output Electronic Overload Protection
Programmable Control Timings	Overload Cutoff Time Auto Restart Time On & Off Delay Time
