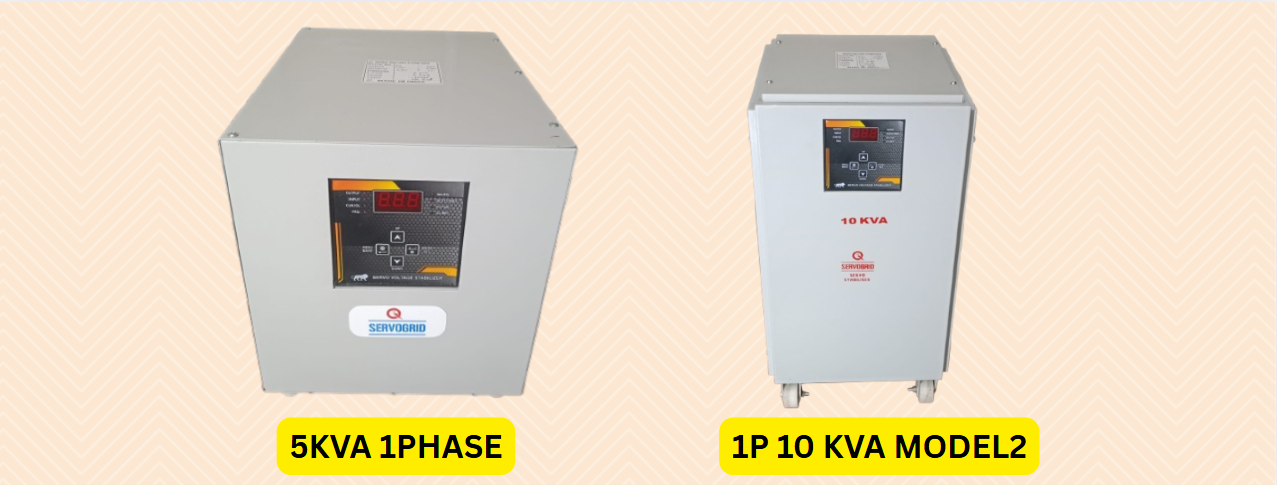

Single Phase Air Cooled Servo Controlled Voltage Stabilizer

Technical Specifications

Category Specification
Input Voltage Range 170-270V AC, 50 Hz
Output Voltage 230V AC, 50 Hz, Single Phase (Adjustable: 220-240V AC)
Operating Frequency 47 to 53 Hz
Output Regulation ±1%
Correction Speed 35V/sec
Capacity Range Up to 20 KVA, Single Phase
Efficiency 98.5%
Response Time 10 milliseconds
Protections High Voltage Protection, Low Voltage Protection, Overload Protection, Short Circuit Protection
Cooling System Natural Air-Cooled
Drive Type Rugged AC Step Synchronous Servo Motor
Enclosure Construction As per IS:9815, IP32 Rated
Waveform Distortion Nil
Power Factor Effect Nil

Dimensions and Weight

Capacity Width (mm) Depth (mm) Height (mm) Weight (kgs)
1 KVA 270 320 300 16
2 KVA 270 320 300 18
3 KVA 350 440 320 25
5 KVA 350 440 320 35
7.5 KVA 400 550 350 65
10 KVA 400 550 350 60
15 KVA 400 400 650 100

Protections

High Voltage Protection
Low Voltage Protection
Overload Protection
Short Circuit Protection

Single Phase

The Servogrid Stabilizer (Single Phase) is designed to provide precise voltage regulation and ensure reliable operation of your electrical equipment.

Front Panel Controls
(PS-Model)

Voltage Correction : 0-35V Analog Meter for Input/Output Voltage
Selector Switch:Toggle between Input and Output Voltage Readings
Auto/Manual Select Switch:For operation mode selection
Potentiometer:For voltage adjustment in Auto mode
Increase/Decrease Switch: To adjust output voltage in Manual mode
LED Indicators:
Input ON
Output ON
Output CUT-OFF
