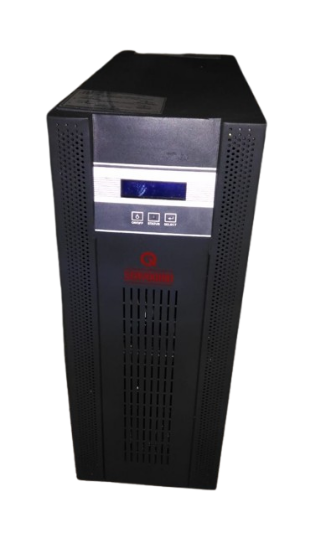

Online UPS Systems

5KVA-40KVA

DSP controlled IGBT technology

FC60-101|FC60-301 |FC60-303

Selectable / Variable output voltage and dual output option also available.

MANUFACTURER & EXPORTER SINCE 1998

Online UPS Technical Specifications
Technology	DSP based, using IGBT. Industrial grade design.
Models	FC60-101, FC60-301, FC60-303
Rating	5KVA - 40KVA
Input
Input Voltage	110VAC, 220VAC, 400VAC or any voltage as per customer requirement. 1Ø/3Ø. DC option is also available.
Input Frequency	50Hz (47Hz – 53Hz)
Input Protection	Advanced Electronic Protection for device safety backed up with MCBs / MCCBs & fast acting fuses.
Output
Output Voltage	110VAC, 220VAC, 400VAC or any voltage. 1Ø/3Ø. Selectable / Variable output voltage and dual output option also available.
Regulation	(±) 1%
Output Frequency	60 Hz ± 0.1Hz
Waveform	True Sinewave
Total Harmonic Distortion	Linear Load: < 1.5% Non Linear Load: < 5%
Transient Response	Remains within +/- 5% & recovers to normal within 20 msec
Over Load Capacity	100% - Continuous 125% - 1 Minute 200% - 30 Seconds
Crest Factor	3:1
Mode of Operation	Designed for Continuous operation with high surge handling.
Inverter Protection	Advanced Electronic Protection for device safety backed up with MCBs / MCCBs, fast acting fuses, high speed pulse by pulse electronic device protection, over voltage / under voltage protection, electronic over current trip.
Alarms
Input / Low / Fail • Output Overload • Over Temperature
LED Indications (Single LED with multi-function)
Inputs ON • FC ON • Overload
User Friendly LCD Displays the Following Parameters
• Input Voltage • Output Voltage • Load Current • Output Frequency
*Specifications are indicative to our standard models and are subject to change without notice.

PFC 303

Advanced Active Power

PFC Online UPS

10KVA-400KVA

10KVA - 400KVA PFC303 Series Online UPS
Technology	DSP based, IGBT converter, IGBT inverter UPS
Rating	10KVA - 400KVA
DC Bus	192VDC - 384VDC
Input
Input Voltage	415VAC, 3Ø & Neutral
Input Voltage Window	330VAC - 470VAC
Input Frequency	45 - 55Hz
Input PFC @ 100% Load	> 0.95
Power Walk-in	Soft-start for 0–20 seconds
Rectifier
Type	IGBT based full bridge
Voltage Regulation	(±) 1%
Ripple Voltage	< 2%
Converter Protection	Advanced Electronic Protection with MCBs/MCCBs & fast acting fuses
Inverter
Inverter Type	IGBT based MPWM with instantaneous Sinewave Control
Output PF	0.8 lagging to unity
Nominal Voltage	415VAC 3Ø, P-P / 230VAC, 1Ø, P-N
Regulation	(±) 1%
Output Frequency	50Hz ± 0.1Hz
Waveform	True Sinewave
Total Harmonic Distortion	Linear Load: < 2% Non-Linear Load: < 5%
Transient Response	Remains within +/- 5% & recovers within 20 msec
Overload Capacity	100% - Continuous 110% - 10 Minutes 150% - 1 Minute
Crest Factor	3:1
Mode of Operation	Designed for Continuous operation
Isolation	True Online with complete Galvanic Isolation
Inverter Protection	Advanced Electronic Protection with MCBs/MCCBs, fast acting fuses, high speed pulse by pulse protection, over/under voltage protection, electronic over current trip
Bypass
Manual Bypass	Provided
Alarms
• Input / Low / Fail • Output Overload • Over Temperature • Battery Low
LED Indications (Single LED with multi-function)
• Mains ON • UPS ON • Battery Low • Overload • Input Voltage • Output Voltage • Load Current • Output Frequency • Battery Voltage

Advanced Active Power PFC Online UPS

Category	Details
Features	• Power Factor Corrected • Digital Signal Processor • Isolation Transformer • SNMP • Auto bypass
Power Factor Correction	• Reduces running cost (electricity bill) • Prevents overrating of electrical wire • Reduces reflected harmonics • Saves sizing of utility transformer & generator
Technology	• DSP technology • IGBT Inverter • IGBT Converter
Topology	Bifilar PWM switching
Interface	• SNMP compatible • User-friendly LCD display • True RMS reading • Fault condition • Status display • Event logging
Ideal Power Conditioner	• Constant Frequency Source • Premium Quality Galvanically Isolated Power • Power Factor Corrector
